| Specs |
UPC Product: 00755652817871
Family Code: FAMTEX
Unit of Measure: EA
Height: 43 IN, 109.22 CM
Length: 33 IN, 83.82 CM
Width: 28 IN, 71.12 CM
Volume: 22.993 FT3, .651 M3
Chargeable Weight: 239.35 LBS, 108.516 KG
Technical Specifications
COMPATIBLE REPLACEMENT PUMP 17H833
CONVERTIBLE Non-Convertible
ENGINE SIZE (HP) 2.8
FEATURES Endurance Vortex MaxLife Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, QuikReel, ProConnect 2, FastFlush 2, Crushproof Inlet Strainer, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
FLUID OUTLET SIZE (CM) 0.9525
FLUID OUTLET SIZE (IN) 3/8
FLUID OUTLET SIZE (MM) 9.525
FLUID OUTLET THREAD TYPE NPSM
FRAME CONFIGURATION Hi-Boy
HOSE REEL TYPE QuikReel
INCLUDES Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
MAXIMUM FLOW RATE (GPM) 1.35
MAXIMUM FLOW RATE (L/MIN) 5.1
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 82
MAXIMUM TIP SIZE (CM) 0.0991
MAXIMUM TIP SIZE (IN) 0.039
MAXIMUM TIP SIZE (MM) 0.9906
MAXIMUM TIP SIZE GUN 1 (CM) 0.0991
MAXIMUM TIP SIZE GUN 1 (IN) 0.039
MAXIMUM TIP SIZE GUN 1 (MM) 0.9906
MAXIMUM WORKING PRESSURE (PSI) 3300
MAXIMUM WORKING PRESSURE (KPA) 22800
POWER RATING (HP) 2.8
POWER SOURCE Electric
POWER RATING (KW) 2.09
POWER RATING (W) 2088
MAXIMUM WORKING PRESSURE (MPA) 22.8
PRESSURE CONTROL TYPE SmartControl 4.0
OVERALL WIDTH (MM) 610

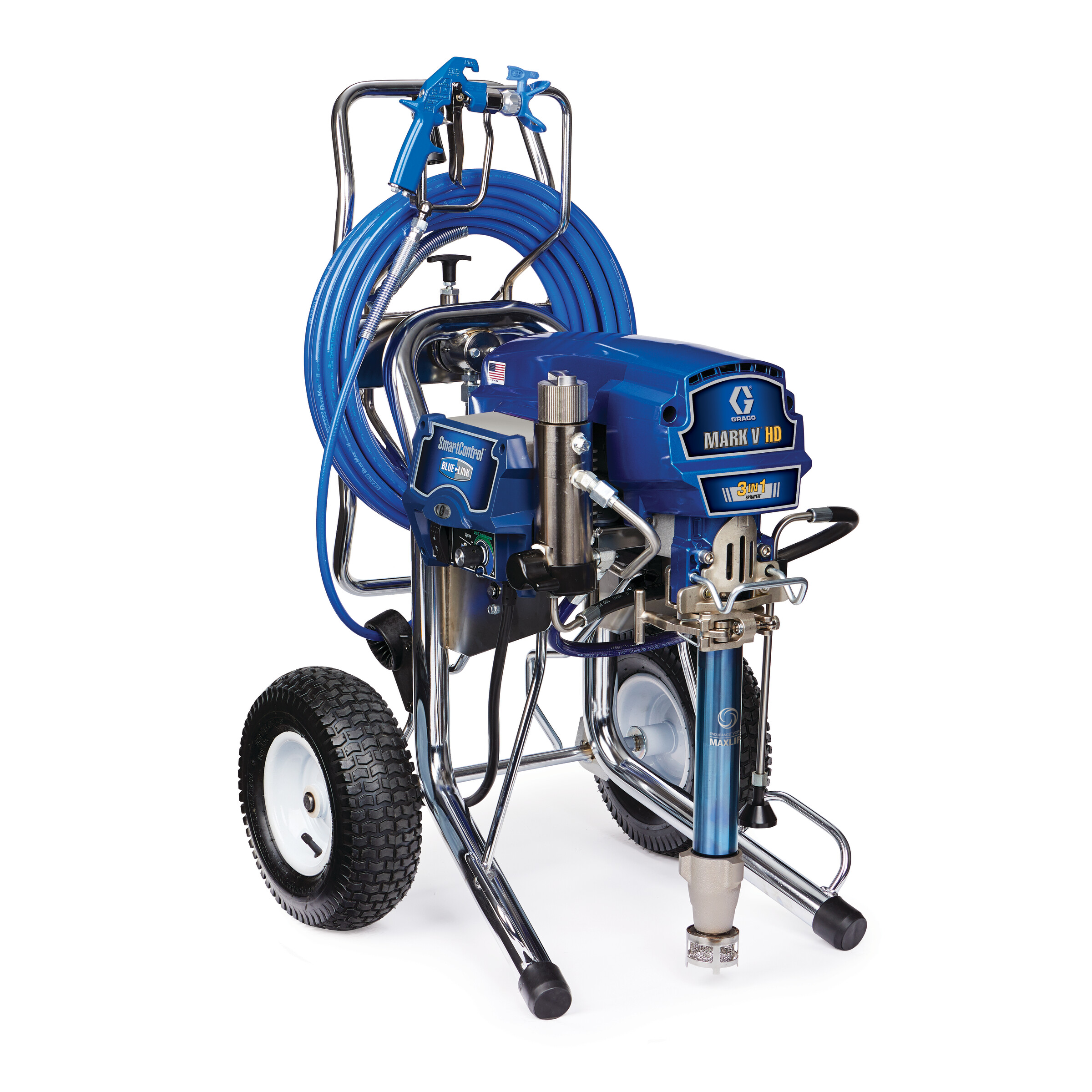

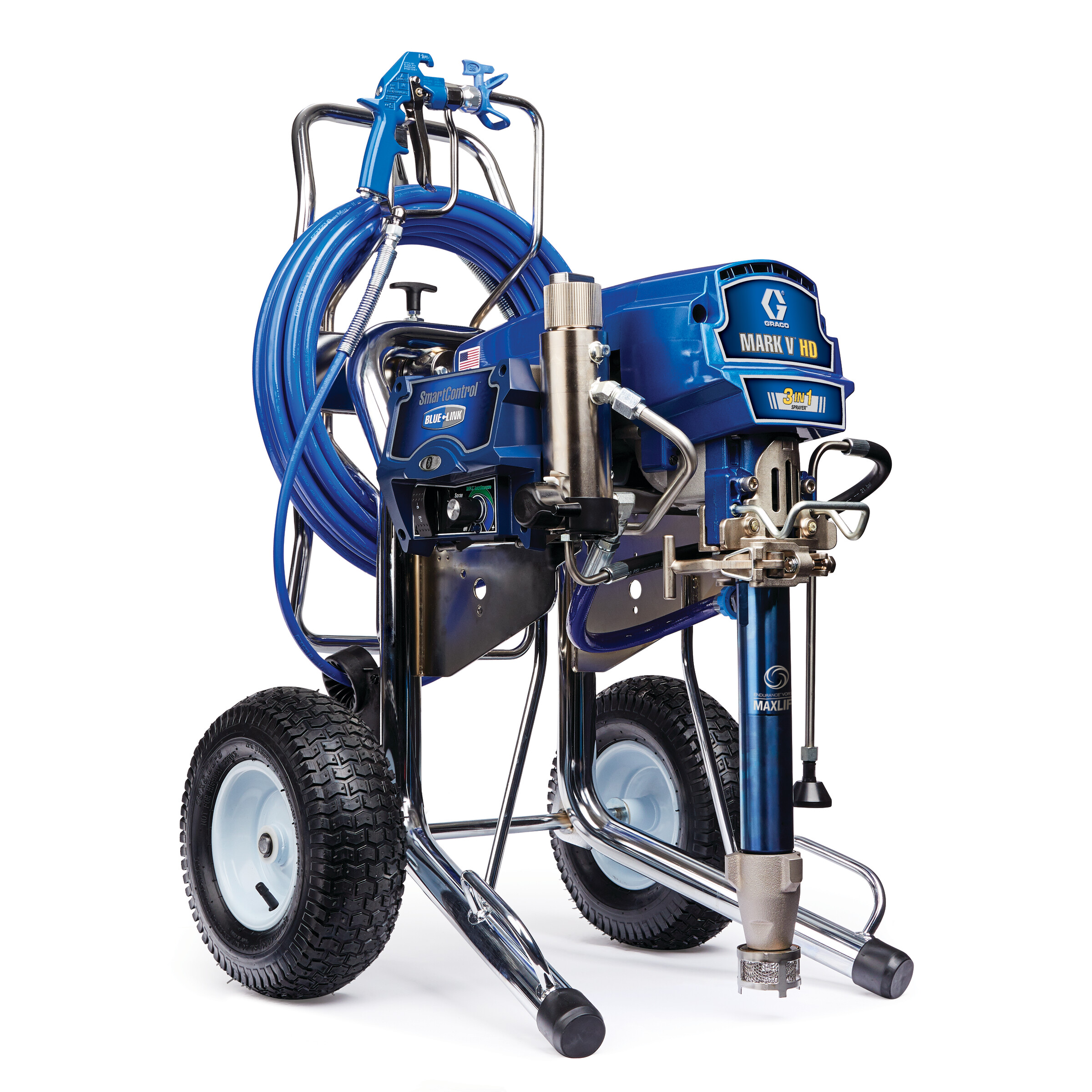

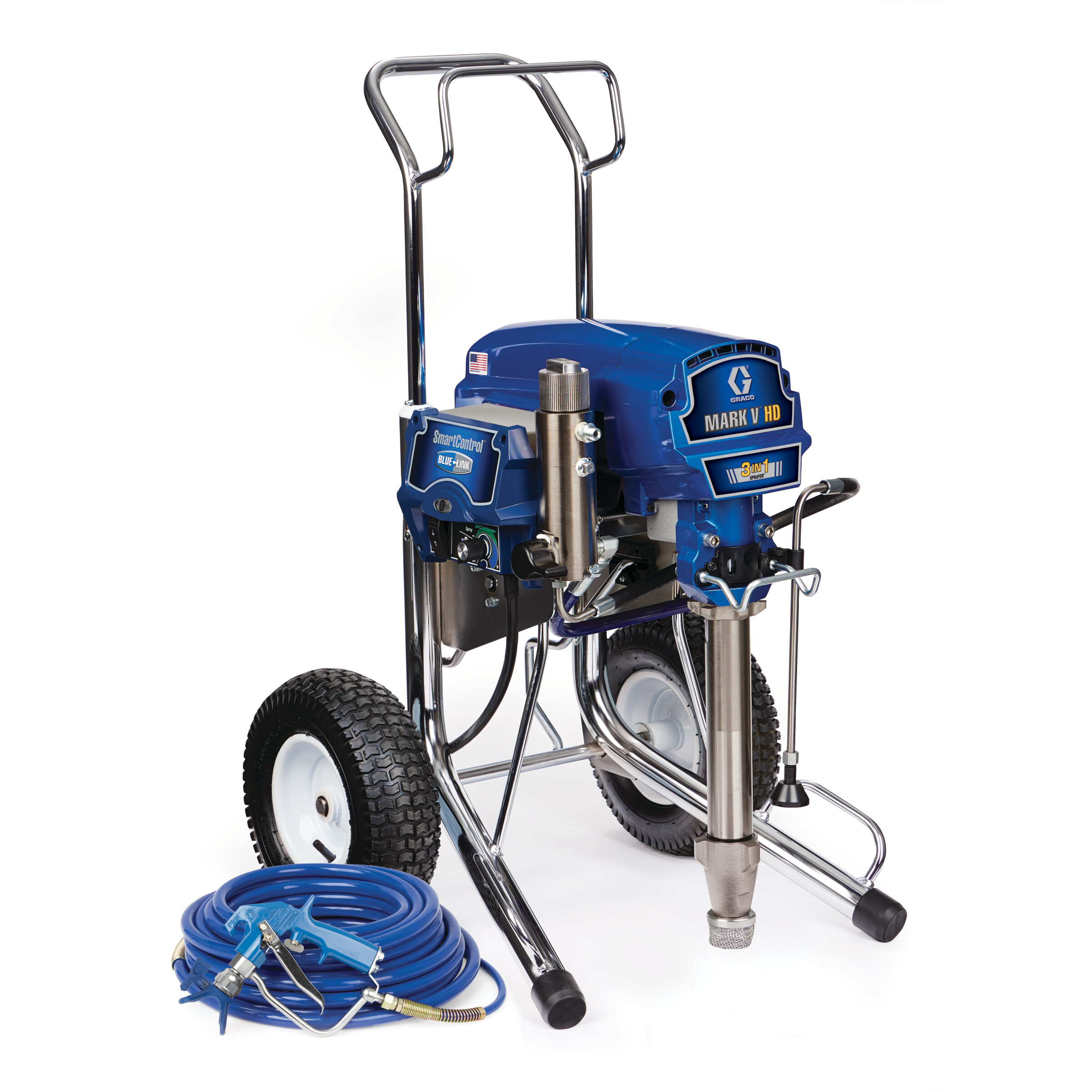

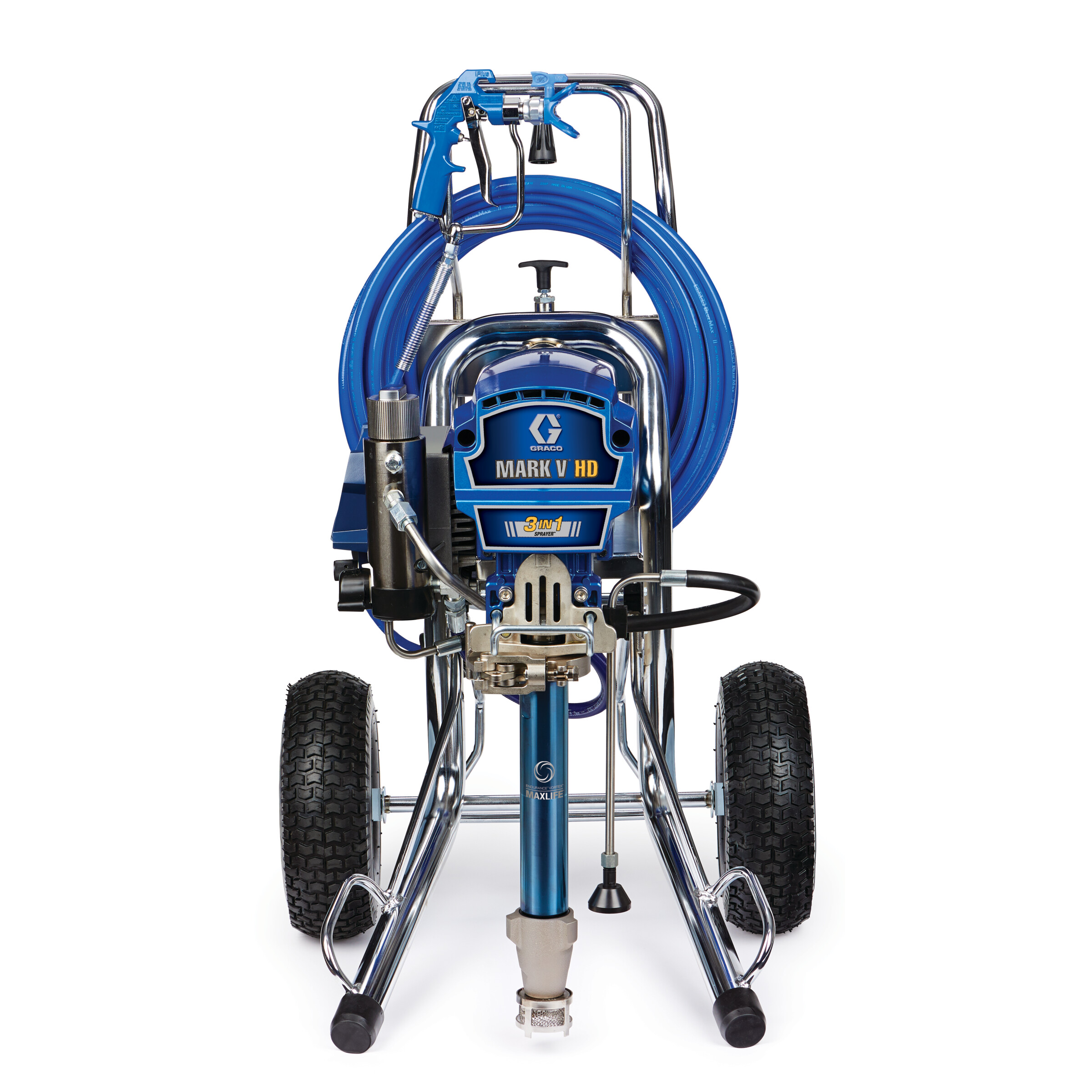

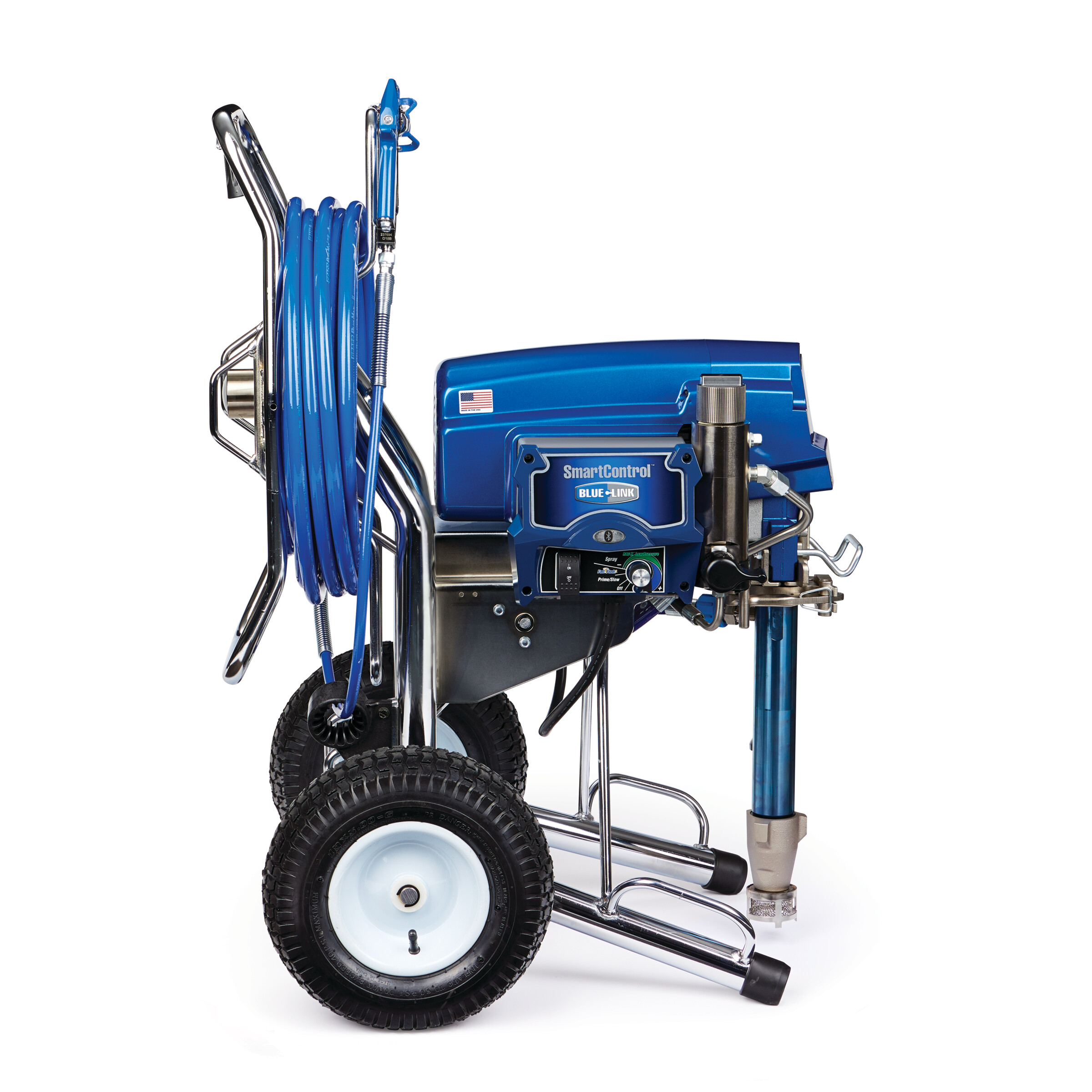

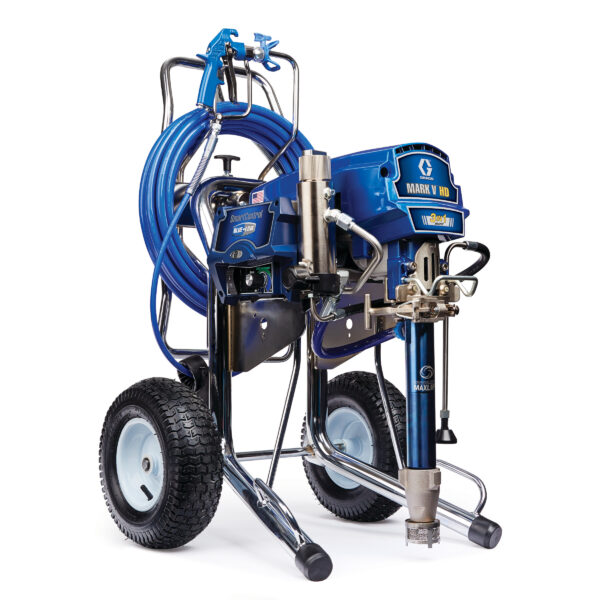

MODEL Mark HD
MAXIMUM WORKING PRESSURE (BAR) 228
OVERALL HEIGHT (CM) 99
OVERALL HEIGHT (IN) 39
WEIGHT (KG) 68
WEIGHT (LB) 151
OVERALL HEIGHT (MM) 990
OVERALL LENGTH (CM) 71
OVERALL WIDTH (IN) 24
OVERALL LENGTH (IN) 28
SERIES V
OVERALL LENGTH (MM) 710
OVERALL WIDTH (CM) 61
TYPE Airless Sprayer
MOTOR TYPE MaxPower
WETTED MATERIAL Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
PUMP SLEEVE MATERIAL MaxLife
VOLTAGE (V) 120
FREQUENCY (HZ) 50/60
PUMP MOUNT TYPE ProConnect 2
PUMP ROD TYPE MaxLife
MINIMUM GENERATOR POWER (W) 5000
NUMBER OF GUNS 1
VOLUME PER CYCLE (CYCLES/GAL) 110
AMPERAGE (A) 20
RECOMMENDED ANNUAL USAGE 100-200 gallons per week
PRODUCT SERIES ProContractor
|
| Features |
Endurance Vortex MaxLife Piston Pump
Superior pump life
Breakthrough vortex rotating rod technology
Lasts 6X longer between repacks with innovative MaxLife technology
Oversized passages for high velocity flow to rotate piston for even wear Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
MaxFlo 2 with Pack-Out Protection
Less pack-out, more productivity
Self-cleaning Vibra-Seal Technology eliminates material build-up
Continuous spraying with True Pack-Out Protection for more productivity
Optimized fluid passageways for the heaviest coatings
BlueLink Job & Sprayer Management System
Streamline your business
Track every sprayer: Exact location & hourly productivity
Know job progress: On demand productivity facts and reporting from anywhere
Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
SmartControl 4.0 with ProGuard Protection System
Precision Pressure Control
Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
ProGuard prevents electrical damage from extreme jobsite power conditions
WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
QuikReel Hose Management System
Easy hose management
Deploy and rewind up to 300 feet (90 meters) of hose in seconds
No twisting, kinking, and coiling
Use only the hose you need — the rest stays on the reel
ProConnect 2 Pump Replacement System
Eliminate costly downtime
Exchange pump in minutes
No tools, pins or parts to lose
FastFlush 2 System
Fast cleaning now even FASTER
Clean the pump 6X faster using ½ the water
High-velocity fluid flow delivered with 60% higher motor speed
Crushproof Inlet Strainer
Durable filtration
Stands up to harsh impacts to maintain even flow through filter
MaxPower Motor & Precision Advantage Drive
Proven power and performance for all painting applications
High-torque brushless design with a Lifetime Warranty
The longest lasting drive
Hardened steel gears provide extremely quiet operation and a lifetime warranty
Additional Features:
WatchDog Pump Protection System
Easy Out Filter Manifold
Heavy-Duty Prime Valve
Rugged, Durable Cart Design with Kickstand
|
