| Specs |
COMPATIBLE REPLACEMENT PUMP 17H828
CONVERTIBLE Non-Convertible
ENGINE SIZE (HP) 2.2
FEATURES Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
FLUID OUTLET SIZE (CM) 0.9525
FLUID OUTLET SIZE (IN) 3/8
FLUID OUTLET SIZE (MM) 9.525
FLUID OUTLET THREAD TYPE NPSM
FRAME CONFIGURATION Hi-Boy
INCLUDES FlexPlus Gun, RAC X LTX 425 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
MAXIMUM FLOW RATE (GPM) 1.1
MAXIMUM FLOW RATE (L/MIN) 4.1
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 82
MAXIMUM TIP SIZE (CM) 0.0838
MAXIMUM TIP SIZE (IN) 0.033
MAXIMUM TIP SIZE (MM) 0.8382
MAXIMUM TIP SIZE GUN 1 (CM) 0.0838
MAXIMUM TIP SIZE GUN 1 (IN) 0.033
MAXIMUM TIP SIZE GUN 1 (MM) 0.8382
MAXIMUM WORKING PRESSURE (PSI) 3300
MAXIMUM WORKING PRESSURE (KPA) 22800
POWER RATING (HP) 2.2
POWER SOURCE Electric
POWER RATING (KW) 1.64
POWER RATING (W) 1641
MAXIMUM WORKING PRESSURE (MPA) 22.8
PRESSURE CONTROL TYPE SmartControl 4.0
OVERALL WIDTH (MM) 572
MODEL Mark HD
MAXIMUM WORKING PRESSURE (BAR) 228
OVERALL HEIGHT (CM) 98.4
OVERALL HEIGHT (IN) 38.75
WEIGHT (KG) 45
WEIGHT (LB) 98
OVERALL HEIGHT (MM) 984
OVERALL LENGTH (CM) 66
OVERALL WIDTH (IN) 22.5
OVERALL LENGTH (IN) 26
SERIES IV
OVERALL LENGTH (MM) 660
OVERALL WIDTH (CM) 57.2
TYPE Airless Sprayer
MOTOR TYPE MaxPower
WETTED MATERIAL Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
PUMP SLEEVE MATERIAL Stainless Steel
VOLTAGE (V) 120
FREQUENCY (HZ) 50/60
PUMP MOUNT TYPE QuikChange
PUMP ROD TYPE Chromex
MINIMUM GENERATOR POWER (W) 5000
NUMBER OF GUNS 1
VOLUME PER CYCLE (CYCLES/GAL) 195
AMPERAGE (A) 15
RECOMMENDED ANNUAL USAGE 100-200 gallons per week
PRODUCT SERIES Standard
|
| Features |

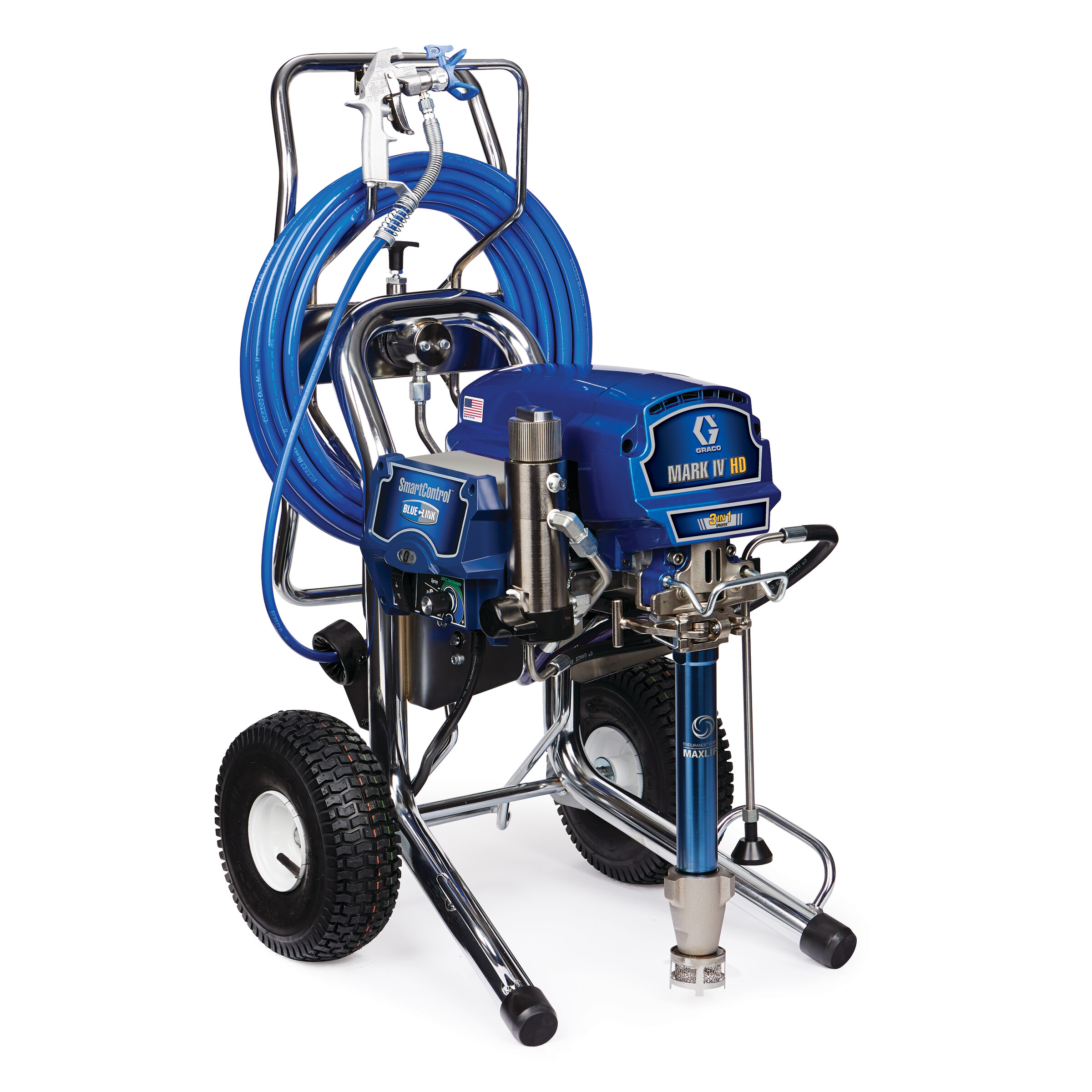

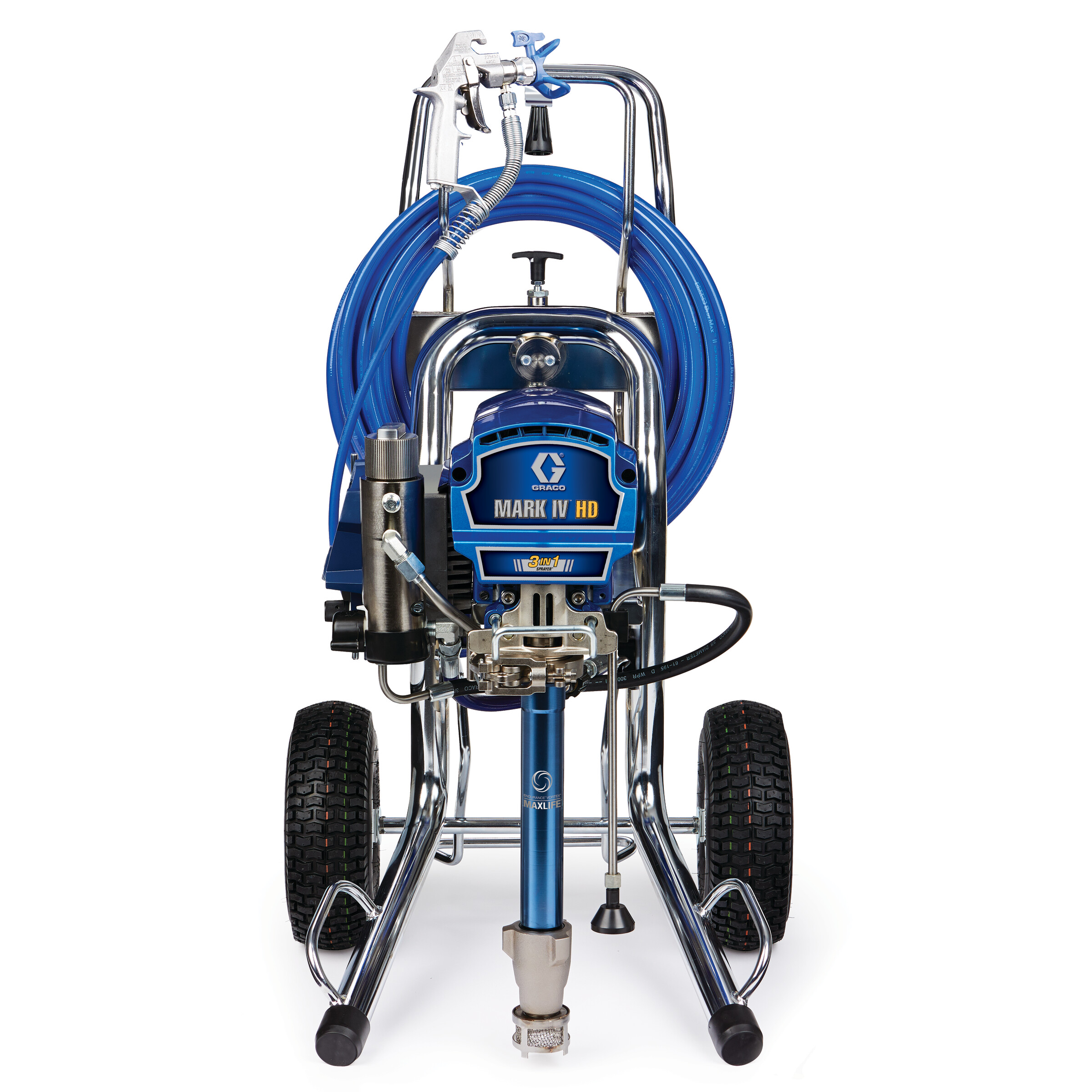

The Mark IV HD is designed to save time and money by allowing you to spray more square footage in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint.
Everyday Reliability. Mark HD Standard Series electric airless texture sprayers provide unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.
Endurance Chromex Piston Pump
The most reliable pump
Lasts 2X longer than the next leading brand
Long life ceramic and stainless steel balls included for maximum versatility
Faster cleaning with the QuikAccess intake foot valve
BlueLink Job & Sprayer Management System
Streamline your business
Track every sprayer: Exact location & hourly productivity
Know job progress: On demand productivity facts and reporting from anywhere
Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
SmartControl 4.0 with ProGuard Protection System
Precision pressure control
Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
Prevents electrical damage from extreme jobsite power conditions
WatchDog Pump Protection System automatically prevents pump damage if the material supply is too low
FastFlush 2 System
Fast cleaning now even FASTER
Clean the pump 6X faster using ½ the water
High-velocity fluid flow delivered with 60% higher motor speed
MaxPower DC Motor & Advantage Drive
Maintenance-Free Power
Field proven brushless design
The Longest Lasting Drive
Improved jobsite conditions with extremely quiet operation
WatchDog Pump Protection System
Prevents dry pumping damage
Automatically shuts pump down when if the material supply is too low
MaxFlo 2 with Pack-Out Protection
Less pack-out, more productivity
Self-cleaning Vibra-Seal Technology eliminates material build-up
Continuous spraying with True Pack-Out Protection for more productivity
Optimized fluid passageways for the heaviest coatings
Easy Out Pump Filter
Easy Pump Maintenance & Less Clogging
Inside-out design means less mess with fewer tip clogs
Heavy-Duty Prime Valve
Maintenance-free high-pressure dumping capability
Rugged, Durable Cart Design
Rugged and easy-to-move
Withstands tough jobsite conditions while absorbing impacts and vibrations
Easy hose storage with integrated hose wrap and telescoping handle
Easy loading with built-in lift handles
|
